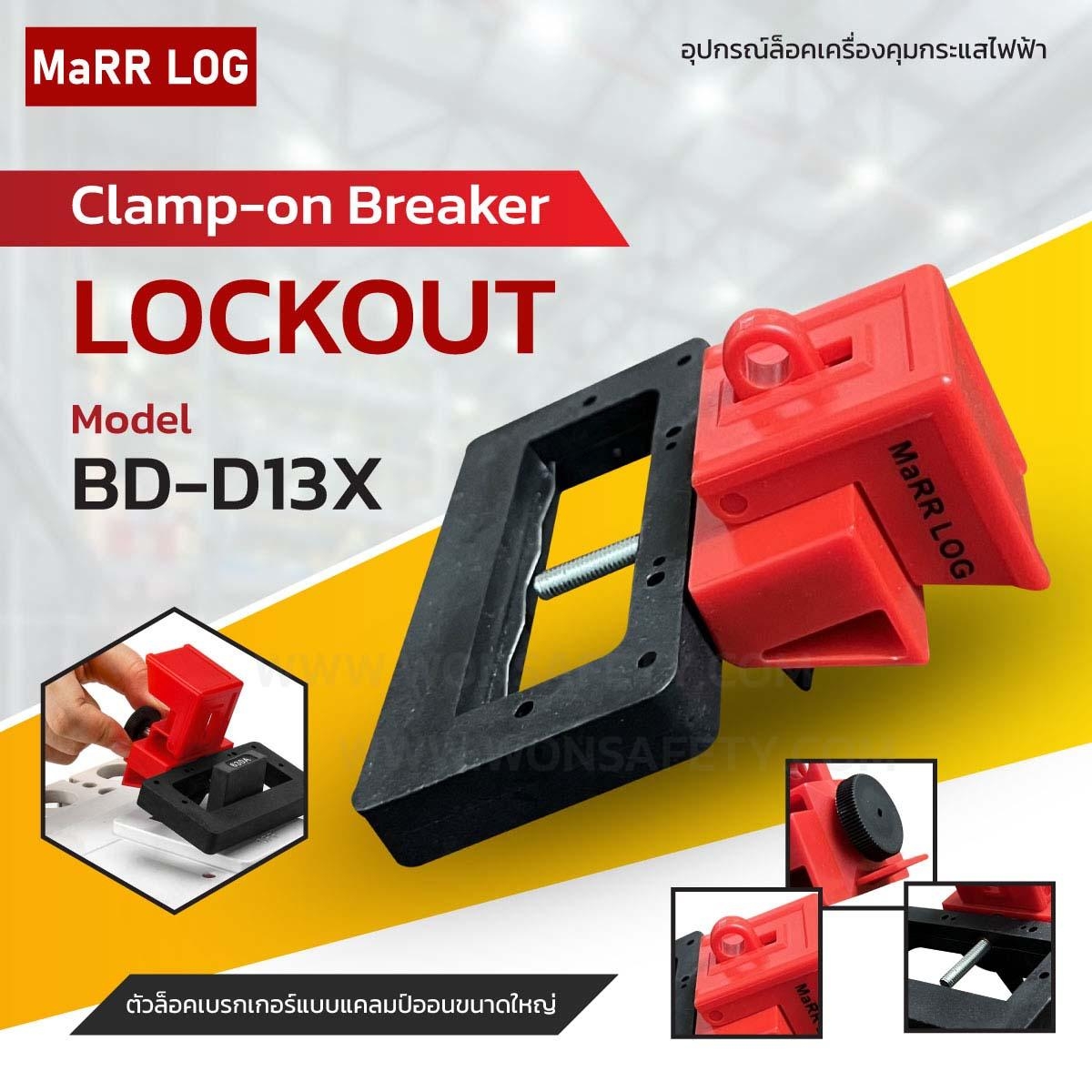

Clamp-On Breaker Lockout BD-D13X

Clamp-On Breaker Lockout

BD-D11X Can lock handle width ≤18mm.

BD-D12X Can lock handle width ≤42mm.

BD-D13X Can lock handle width ≤72mm.

a.Clamp-On Circuit Breaker Lockout Made from polypropylene PP and PA.

b.Clamp-On Circuit Breaker Lockout Use thumbscrew to clamp lockout securely onto switch tongue, then pull cover and lock in place to prevent clamp from being loosened.

c.Clamp-On Circuit Breaker Lockout New blade design provides tighter grip with less torque on thumb screw.

d.Clamp-On Circuit Breaker Lockout Detachable cleats expand the range of applicable breakers.

e.This Clamp-On Circuit Breaker Lockout can use together with a shackle diameter≤ 7mm padlock.

Electrical lockout lockouts body and button part are made of reinforced nylon PA material with wear resistance, corrosion resistance, good insulation and temperature difference resistance (-50℃~+177℃).

The miniature circuit breaker lockouts do not require any installation tools! The lock body comes with a button buckle design, and the installation can be easily completed by manually pressing the button. And The lever-type circuit breaker lock uses a finger-turned first wheel for quick installation.

Suitable for a variety of single-stage, multi-stage and any miniature circuit breakers to protect employees from electrical accidents during equipment maintenance.
