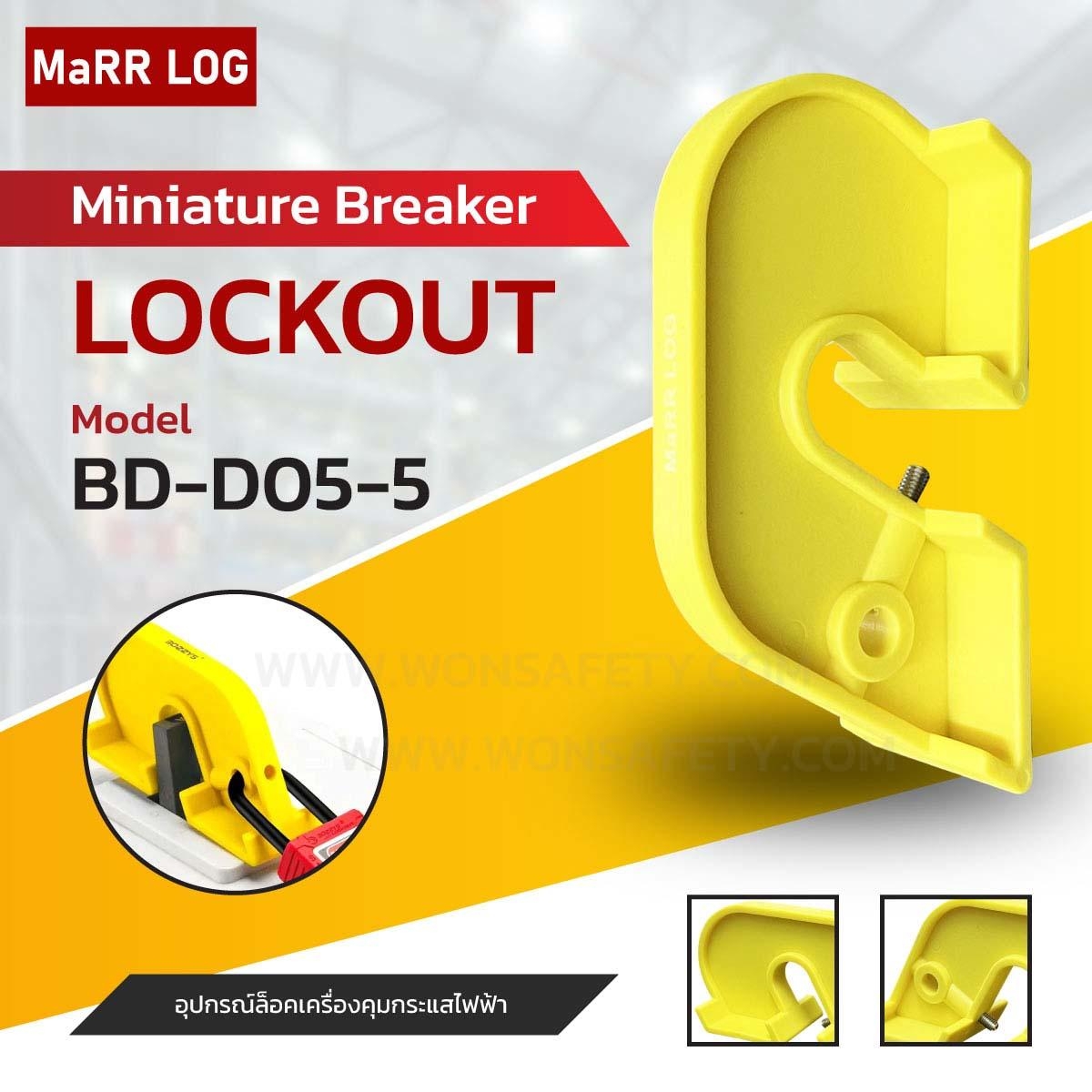

Circuit Breaker Lockout BD-D05-5

Universal circuit breaker lockout kit

Suitable for wide range of single, double, triple and four pole of electrical circuit breaker can be accommodates up to one padlock and with the help of hasp lockout device can be used for group isolation.

a.Made from rugged reinforced nylon PA.

b.Can lock it with screw driver.

c.Can accommodate one safety padlock with shackle diameter ≤7mm.

d.Can lock all kinds of circuit breakers.

BD-D05 Means one series, each type one piece, 6 pieces in total.

BD-D05-1 Suitable for single pole miniature circuit breakers with handle width ≤7.7mm

BD-D05-2 Suitable for 2 to 4 poles miniature circuit breakers

BD-D05-3 Suitable for mini and middle size circuit breakers with handle width ≤5mm

BD-D05-4 Suitable for mini and middle size circuit breakers with handle width ≤5mm

BD-D05-5 Suitable for large size circuit breakers

BD-D05-6 Suitable for mini size circuit breakers with handle width ≤9.3mm

middle size circuit breakers with handle width ≤12mm

Product Application

Electrical  safety locks are suitable for various specifications of circuit breakers, wall switches, emergency stop button switches, and electrical plugs, etc. We also developed and produce various safety locks: safety padlocks, valve locks, industrial electrical locks and lock stations, etc., which can meet the safety locks of various equipment and effectively prevent misoperation.
